highway guardrail cad drawings

highway guardrail cad drawings provided

highway guardrail cad drawings can be downloaded from the Internet. The function of highway guardrail cad drawings is as the basis of production. When producing guardrail, we should strictly follow the highway guardrail cad drawings.

highway guardrail cad drawings are generally provided by manufacturers, because the manufacturers have technical engineers. The more accurate the highway guardrail cad drawings are, the smaller the error of the highway guardrail produced is, and the highway guardrail specifications produced will be more in line with the requirements.

highway guardrail cad drawings are drawn by computer. In the computer, the various parts and connection modes of the guardrail, such as guardrail, post, spacer, and how they are connected by bolts, are displayed.

highway guardrail cad drawings are the basis of production, but the production of guardrail can not rely solely on highway guardrail cad drawings. The technology of the manufacturer, the experience and proficiency of the workers, and the performance of the machine will affect the final forming of the guardrail.

Hongda Traffic Facility Co.,Ltd is a comprehensive enterprise integrating production, sales and service. The company specializes in the production and sale of traffic safety facilities, the main products are highway guardrail, pillars, anti-blocking, diaphragm beams, column caps, brackets, brackets, etc. Our company has more than 20 professional and technical personnel, equipped with domestic advanced measuring instruments, strict quality control, product pre-factory inspection, fundamentally eliminate the flow of unqualified products to the market, and equipped with professional installation and construction team, deeply trusted by new and old customers.

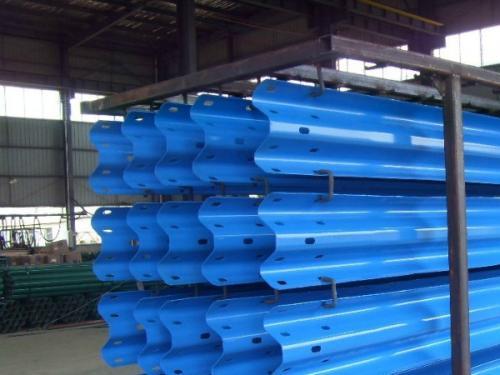

w beam guardrail

highway guardrail cad drawings distinguish

highway guardrail cad drawings are divided into national standard and American standard. The hole spacing and size of national standard and American standard highway guardrail cad drawings are different. Each manufacturer has the design and requirements of each manufacturer. Customers should carefully check whether the specifications on the highway guardrail cad drawings are in conformity with their own requirements when choosing and purchasing.

The speed of automobiles on expressways is usually very high. Once there is any sudden accident, if there is no guardrail on the side, the impact is very great. The high-speed car crashes into the guardrail, which will cause a huge impact force, so the material used to make the guardrail must have a very strong impact resistance.

Because the guardrail is a product installed on the expressway, the design of the guardrail should be divided into sections and then combined. Moreover, different sections have different requirements for their design, so as to ensure that the guardrail designed in different sections can effectively rise to the protection capacity.
